Diamond Jack

CROSBY PRODUCTS

Brand

CROSBY

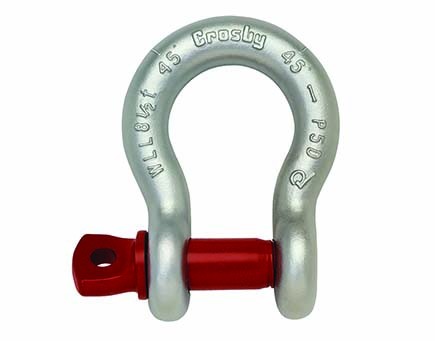

Crosby - Shackle G-209

• No Pin

• Forged - Quenched and Tempered, with alloy, grade 6.

• Working Load Limit and grade 6° permanently shown on every shackle

• Approved for use at -40 degrees C (-40 degrees F) to 204 degress (C 400 degress F).

CODE	ITEM DESC	PART NUMBER	SIZE	WEIGHT	PRICE
SP06165	Size : 1-1/4" (12 Ton)	1018570	190 x 156 x 77 mm	4310	Rp. 1.119.000
SPA0349	Size : 1" (8.5 Ton)	1018534	152 x 130 x 61 mm	2290	Rp. 694.500
SP06484	Size : 1-3/4" (25 Ton)	1018632	286 x 231 x 106 mm	1260	Rp. 2.580.000
SP06208	Size : 2" (35 Ton)	1018650	315 x 263 x 122 mm	2040	Rp. 5.304.500
SP06209	Size : 2-1/2" (55 Ton)	1018678	417 x 330 x 145 mm	3890	Rp. 11.117.500
SP05987	Size : 3/4" (4.3/4 Ton)	1018491	115 x 101 x 46 mm	1070	Rp. 388.000

RESET

VIEW PRODUCT

Shackle - G 2130
